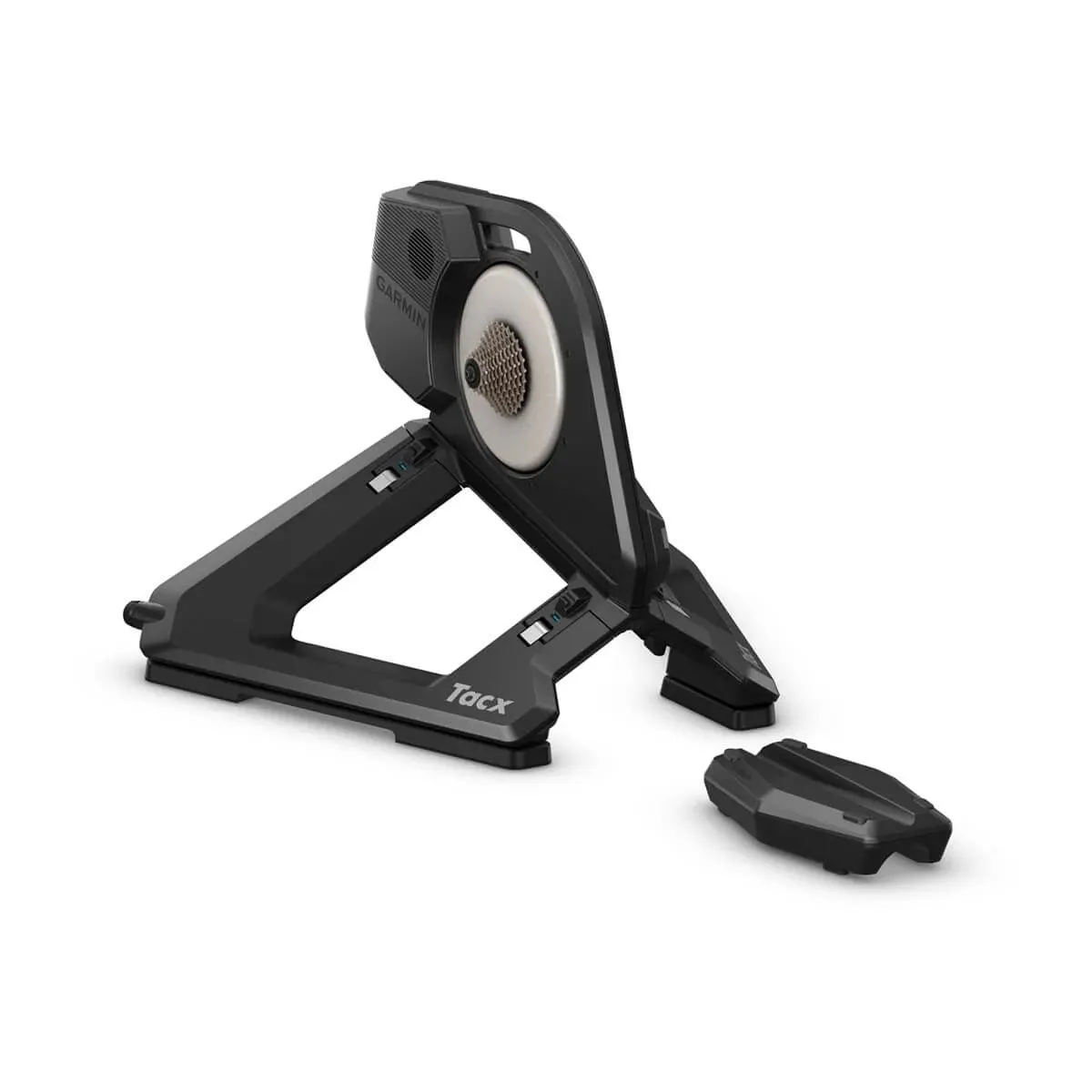

Garmin Tacx NEO 3M Smart Trainer
TRAINING IS LIFE
Tacx NEO 3M is a powerful direct-drive smart trainer with built-in multidirectional movement and a state-of-the-art NEO magnet motor for the most realistic indoor ride.
What You'll Love
Specifications
General
| DIMENSION | 24.8" x 31.5" (630 x 800 mm) |
| HEIGHT | 23.4" (595 mm) |
| DIMENSIONS WHEN FOLDED | 27.4" x 14.0" (695 x 355 mm) |
| WEIGHT |
52.0 lbs (23.6 kg) |
Connectivity
| WIRELESS COMMUNICATION |
ANT connectivity, dual BLUETOOTH wireless technology connection support |
| TACX SMART NETWORK ADAPTER COMPATIBILITY | yes (provides Wi-Fi® and Ethernet connectivity option) |
| CONTROL BY |
Smartphone, tablet, ANT bike computers, stand alone, computer connection via ANT antenna. |
| READ OUT ON |
Smartphone, tablet, bike computer, compatible smartwatch, computer with ANT antenna |
| CONNECTION INDICATOR (ANT /BLUETOOTH) | Multicolor LED |
| POWER INDICATOR | Multicolor LED, spot on floor |
Indoor Training Features
| MAGNETS | 32 neodymium magnets |
| ELECTRICAL REQUIREMENT | 100-240 VAC 50/60Hz (with integrated power adapter) |
| SUITABLE CASSETTES |
Shimano/SRAM 9 to 11 speed (compatible, 11-speed cassette included) Campagnolo (compatible, requires special cassette body) SRAM 12 speed/XDR (compatible, requires special cassette body) Shimano 12-speed Hyperglide |
| SUITABLE AXLES |
Direct Drive quick release axle (130 mm/135 mm X 5 mm) for bikes with quick release axle Thru axle end caps (142 mm/148 mm X 12 mm) for bikes with thru-axle For bike dimensions outside of the industry standard, Garmin offers this adapter set as an additional accessory: 135 mm Thru-Axle Adapter Set [10 x 135 Non-drive Side (NDS), 12 x 135 NDS and 10 x 135 Drive-side (DS)]. |
| MAX POWER | 2200 Watt |
| MAX INCLINE | 25% |
| SIMULATION OF DESCENT | Yes |
| MAX TORQUE | 88 Nm |
| MAX BRAKE FORCE | 260 N |
| FLYWHEEL | Virtual |
| MASS INERTIA | Variable to 275.6 lbs (125 kg) |
| CALIBRATION | No calibration needed |
| OUTPUT | Speed, cadence, power |
| ACCURACY | <1% |
| MEASURED SPEED | Yes |
| MEASURED CADENCE | Yes |
| MEASURED POWER | Yes |
| INTEGRATED MOTION PLATES | Yes |
| WORKS WITHOUT MAINS CONNECTION | Yes |
